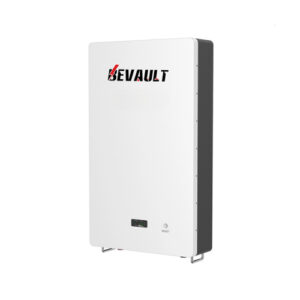

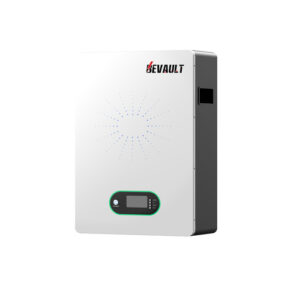

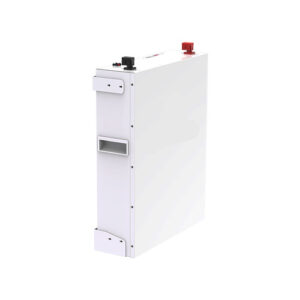

Wall Mounted Lithium Battery Solutions
Premium wall-mounted lithium batteries designed for residential and commercial energy storage systems. Featuring Grade A cells, advanced BMS protection, and compact design for maximum space efficiency.
The 25.6V rating aligns perfectly with the input voltage requirements of most 1-3kW inverters. his configuration offers a compact and lightweight solution
48v/51.2v offer high energy density and efficient discharge/charge cycles

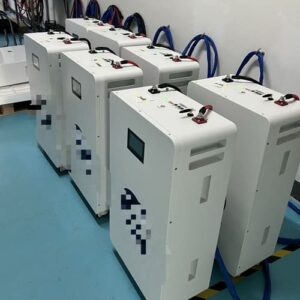

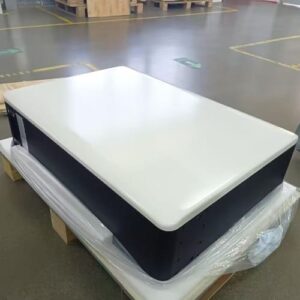

5kwh/10kw/14kw/16kw additional capacity can be added easily to meet expanding power needs, supporting future growth and application changes
51.2v 100ah/200ah/280ah/340ah with IP20/IP54/IP65 available.Optional bluetooth, WIFI

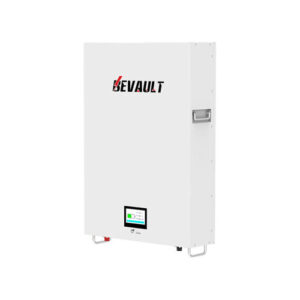

Compact Design
Super slim wall-mounted design for easy setup and maximum space efficiency at home.
Extended Lifespan
6000+ cycles lifetime, five times longer than regular lead-acid batteries.
Lightweight
Only 114 lbs - 60% lighter than lead-acid alternatives for easier installation.
Premium Quality

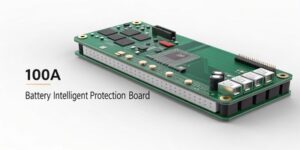

Grade A cells with integrated 100A BMS for optimal safety and performance.
| Model | 25.6V100Ah | 25.6V200Ah | 51.2V100Ah | 51.2V200Ah | 51.2V280Ah |
|---|---|---|---|---|---|
| BPW-25100 | BPW-25200 | BPW-51100 | BPW-51200 | BPW-51280 | |
| Battery Type | LiFePO4 Battery | ||||
| Battery Style | 25.6V100Ah | 25.6V200Ah | 51.2V100Ah | 51.2V200Ah | 51.2V280Ah |
| Battery Energy | 2.56kWh | 5.12kWh | 5.12kWh | 10.24kWh | 15kWh |
| Nominal Voltage | 25.6V | 25.6V | 51.2V | ||
| Rated Capacity | 100Ah | 200Ah | 100Ah | 200Ah | 280Ah |
| End-of-Charge Voltage | 29V | 58.0V | |||
| End-of-Discharge Voltage | 21.0V | 21.0V | 42.0V | ||
| Standard Charge Current | 50A | 50A/100A | 50A | 100A | 200A |
| Max. Charge Current | 100A | 100A | 100A | 200A | 200A |
| Standard Discharge Current | 100A | 100A | 100A | 100A/200A | 100A/200A |
| Max. Discharge Current | 100A | 100A/200A | 100A | 100A/200A | 100A/200A |
| Max. Peak Current | 150A | 250A | 150A | 300A | 400A |
| Charge/ Discharge Interface | 2P/ M8 Terminal (optional) | ||||
| Communication Interface | RS485/CAN | ||||
| Shell Material/ Color | Metal/ White (color optional) | ||||
| Work Temperature Range | Charge: 0°C~50°C Discharge: -15°C~60°C | ||||
| Size (mm) | 485*300*140mm | 600*410*140mm | 600*410*140mm | 850*485*145mm | 850*420*230mm |
| Weight (kg) | 26kg (about) | 45kg (about) | 45kg (about) | 89kg (about) | 115kg (about) |
Customized Wall-Mounted Lithium Battery Solutions to Meet Your Unique Requirements
In search of top-quality wall-mounted lithium batteries designed to endure the most demanding energy storage applications? Collaborate with us to develop the ideal solution tailored to your precise needs. Our team of experts is committed to delivering custom-designed wall-mounted lithium battery systems that provide exceptional durability, efficiency, and reliability in even the harshest environments.
Material and Technology Selection
Our wall-mounted lithium batteries are crafted using branded cell(REPT/EVE/GOTION etc.) and BMS(JBD/PACE/JIKONG etc.), with options for enhanced features like LCD, Bluetooth, WIFI, Hearing, tailored to suit your specific application
Design and Configuration Options
Choose from various configurations, including compact, modular, or custom designs to fit your space requirements. We also offer a range of mounting systems for easy installation and integration into existing energy systems.
Efficiency and Output Rates
Our batteries feature high energy density5kw, 10kwh,14kwh.15kwh,16kwh with capabilities for rapid charging and discharging. Designed with robust architecture, they ensure optimal performance in various energy scenarios.
Wall-Mounted vs Rack-Mounted Lithium Batteries: Making the Right Choice
When choosing between wall-mounted and rack-mounted lithium battery installations, consider your available space, capacity requirements, aesthetic preferences, and budget constraints. Each mounting solution offers distinct advantages suited to different environments and applications.
Rack-Mounted Installation
Advantages
- Easy integration with existing IT equipment (3U module design)
- Supports large-scale, high-capacity energy storage needs
- Cost-effective solution for substantial power requirements
- Versatile applications in both residential and industrial settings
Ideal For
- Data centers and server rooms
- Commercial energy storage systems
- Industrial applications requiring significant backup power
Wall-Mounted Installation
Advantages
- Space-saving design utilizing vertical wall space
- Aesthetically pleasing with modern design elements
- Perfect for residential and low-capacity applications
- Clean installation without floor space requirements
Ideal For
- Residential solar energy storage systems
- Small offices with limited floor space
- Locations where aesthetics are a priority
Beyond Just a Lithium Battery Provider
At BEVAULT, we offer more than just high-quality wall-mounted lithium batteries. We provide power solutions meticulously engineered to meet the precise demands of your projects. With a focus on customized engineering, energy efficiency, and extended longevity, our commitment to delivering excellence has earned us a trusted reputation in the energy storage industry.
Expert Guidance on Technology Selection
Unsure which lithium battery technology – LiFePO4, NMC, or another advanced chemistry – suits your application best? Let our experts guide you to the ideal choice, ensuring that your lithium batteries deliver optimal performance in your specified environment.
Unmatched Technical Support
Whether you require expert advice on design specifications or performance optimization, we're here to offer comprehensive technical support. From initial consultations to on-site engineering assistance, our team is dedicated to ensuring that your lithium battery solutions meet and exceed your expectations.
Extensive Customization Options
Our capabilities go far beyond standard wall-mounted lithium batteries. We offer custom designs, advanced thermal management systems, reinforced casing, and integration-ready mounting solutions tailored to a wide range of energy applications. Each battery system is crafted to seamlessly integrate into your operations, enhancing both efficiency and reliability.
Advanced Manufacturing Expertise
With over a decade of experience in lithium battery fabrication, we bring precision and expertise to every unit we produce. Whether you're seeking specific capacity configurations, enhanced discharge rates, or advanced safety features, we take pride in engineering and finishing your battery systems to the highest industry standards.
Smart BMS
Smart BMS Multiple Protection
High Density
Max Load Power
6000+
Cycles Life

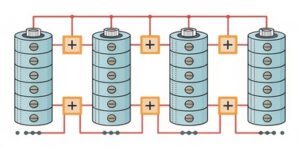

Flexible Parallel
expandable
Low-Temp Cut-Off
Protection

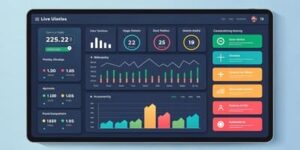

Display Monitoring
Real-time monitoring
A Flexible and Robust Energy Solution for Every Need
Discover how BEVAULT batteries power diverse applications with reliability and efficiency, from renewable energy to marine systems.

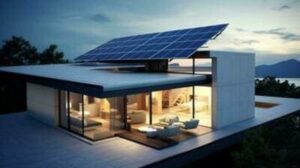

Solar Energy Systems
RV & Mobile Applications
Off-Grid Power Solutions
Marine & Boat Power
Backup Power Systems
Lithium Battery FAQs
Find answers to the most common questions about our lithium battery products
Lithium batteries offer several advantages over lead-acid batteries, including: higher energy density (3-4 times more energy per weight), longer cycle life (up to 10 times more cycles), faster charging capability, maintenance-free operation, wider operating temperature range, and lower self-discharge rate. While the initial cost is higher, the total cost of ownership is typically lower due to the extended lifespan and improved performance.
Our lithium batteries are designed for longevity, typically offering 2000-5000 complete charge-discharge cycles depending on the specific model and usage conditions. Under normal operating conditions, this translates to approximately 5-10 years of service life. Factors that affect lifespan include depth of discharge, charging patterns, operating temperature, and maintenance practices.
Yes, our lithium batteries incorporate multiple safety features including built-in Battery Management Systems (BMS) that protect against overcharging, over-discharging, short circuits, and temperature extremes. All our products undergo rigorous testing and comply with international safety standards including IEC, UL, and CE certifications. We also provide comprehensive installation guidelines to ensure safe operation in all applications.
We offer flexible MOQ options to accommodate different business needs. For standard models, our MOQ starts at 10 units. For customized solutions with specific requirements, the MOQ is typically 50 units. We're committed to supporting businesses of all sizes, so please contact our sales team for specific requirements, and we'll work to find a solution that meets your needs.
Absolutely. As a manufacturer with over 10 years of experience, we offer comprehensive customization services including capacity adjustments, custom dimensions, terminal configurations, communication protocols, and branding with your logo. Our engineering team can work with you to develop batteries that perfectly match your application requirements while maintaining all safety and performance standards.
We stand behind the quality of our products with a standard 5-year warranty for most of our lithium battery models. This warranty covers manufacturing defects and premature performance degradation under normal operating conditions. Extended warranty options are available for specific applications. Please refer to the product documentation for detailed warranty terms and conditions.
For standard products, our typical lead time is 2-3 weeks after order confirmation. For customized products, lead time is generally 3-5 weeks depending on the complexity of customization and order volume. We maintain substantial inventory of common components to ensure quick production turnaround. For urgent orders, we offer expedited production options – please discuss your timeline requirements with our sales team.
Our lithium batteries are engineered to perform reliably across a wide temperature range. Standard models operate effectively from -20°C to 60°C (-4°F to 140°F). For extreme environments, we offer specialized versions with enhanced thermal management systems that can function in temperatures as low as -40°C or as high as 70°C. The built-in BMS includes temperature monitoring and protection to prevent operation outside safe temperature ranges.
Our lithium batteries meet the highest international standards and are certified with CE, UL, IEC , UN38.3,MSDS for transportation safety, RoHS for environmental compliance, and ISO 9001 for quality management systems. We regularly update our certifications to comply with evolving global regulations. For specific markets, we can obtain additional certifications as required to ensure full compliance with local regulations.
Yes, we provide comprehensive after-sales technical support for all our products. Our support includes installation guidance, troubleshooting assistance, performance optimization advice, and system integration support. Our technical team is available via email, phone, and video conferencing. For major clients, we can arrange on-site technical support as needed. We also provide regular firmware updates and technical documentation to ensure optimal performance throughout the product lifecycle.
