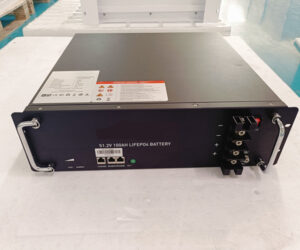

Rack Mounted Type Battery
Used to provide safe, reliable and stable energy for various applications. Meanwhile, the module supports expansion on both capacity and power by multiple parallel uses. It supports CAN, RS485 & WiFi communication and can meet the requirements of mainstream energy storage inverter communication protocols.
-
Stand 3U/19inch design
-
Available with 12V/24V/48V/51.2V
-
Rack-mounted, parallel supported
-
Smart BMS, adjustable protection parameter
-
RS485/RS232/CAN communication port
-
LCD Screen/breaker/terminal can be customized
-
Compatible with mainstream inverters
Product Specifications
| Item | General Parameter | |||
|---|---|---|---|---|
| Battery Model | BPR51250 | BPR512100 | BPR512130 | BPR512200 |
| Energy | 2560Wh | 5120Wh | 6656Wh | 10240Wh |
| Rated Capacity | 50Ah | 100Ah | 130Ah | 200Ah |
| Nominal Voltage | 51.2V | |||
| Cut-Off Voltage | 47V | |||
| Charging Voltage | 54.5V | |||
| Standard Charge | [email protected] to 54.5V, then CV till current to 0.05C | |||
| Max. Continuous Charge Current | 50A | 100A | 100A | 120A |
| Max. Continuous Discharge Current | 50A | 100A | 100A | 120A |
| Pulse Discharge Current | 60A | 120A | 120A | 130A |
| Communication | CAN / RS232 / RS485 | |||
| Operation Temperature | Charge: 0~55℃ Discharge: -20~65℃ |
|||
| Storage Temperature | 0~45℃ | |||
| Cycle Life | ≥6000 Cycles | |||
| Parallel Connection | Yes | |||
| Certificates | UN38.3 / MSDS / CE / UKCA | |||
| Dimension (L*W*H) | 482*400*133mm | 482*495*177mm | 482*560*177mm | 482*560*267mm |
| Net Weight | 25kg | 46kg | 58kg | 85kg |
Key Advantages
-
Tier One, A+ Cell Composition
-
AC Coupled for both new and retrofitted installations
-
Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
-
No Thermal Runaway with Fire Propagation
-
No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
-
Extended Operating Temperature -4 to 140F
-
98% Efficiency Rate
-
Supports 1C discharge rate
-
>6000 Cycle Life @80% DOD
Smart BMS Functions
Applications

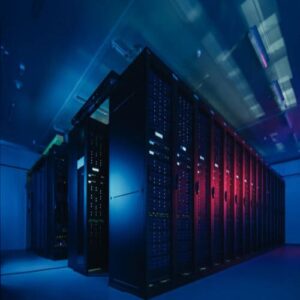

Data Centers & Financial Institutions
Reliable power backup for critical data infrastructure and financial operations.

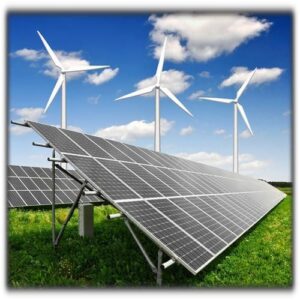

Solar & Wind Hybrid Systems
Perfect for renewable energy storage and grid integration solutions.

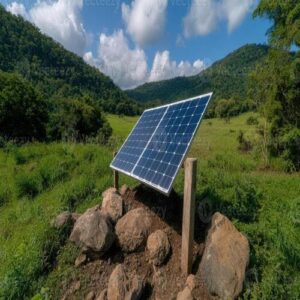

Off-Grid Energy Storage
Ideal for remote locations and areas without reliable power supply.
Multifunction in Different Scenarios
This expandable battery pack, featuring a built-in Battery Management System (BMS), is designed to offer versatile energy storage solutions for homeowners. It can be seamlessly integrated into a rack storage system or used as a standalone unit in a home solar setup.
By incorporating an inverter, this battery pack can become a crucial component of a smart home energy storage system. This allows homeowners to store electricity generated from on-site solar panels or the grid, providing an effective backup power source during emergencies.
While its appeal as an emergency power supply is undeniable, the primary purpose of this battery pack is to enable homeowners with solar energy systems to maximize the use of the electricity produced. It efficiently extends the utility of solar power generated during the day for consumption at night, positioning itself as a viable alternative to options like the Powerwall.
